COPPERBLE CUP22
It is a nano copper antibacterial agent uniformly dispersed in an ethanol solvent in a nano size of 10-50㎚. It can be applied to both oil-based and aqueous types, and is a nano-copper inorganic antibacterial agent with excellent dispersibility as a nano-coloid type.
COPPERBLE CUP22
Features
It is a nano copper antibacterial agent uniformly dispersed in an ethanol solvent in a nano size of 10-40㎚.
It can be applied to both oil-based and aqueous types, and is a nano-copper inorganic antibacterial agent
with excellent dispersibility as a nano-coloid type.

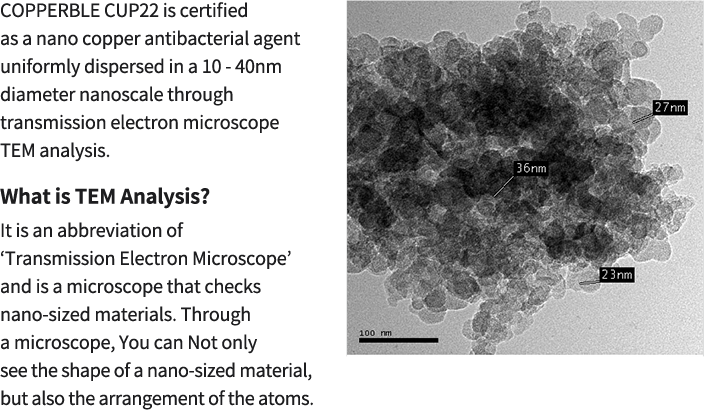

TEM Analysis
Particle size analysis (SMPS)
The nano copper antibacterial agent CUP22 showed
that the average particle size was 17.65±0.99 nm as a result of
measurin the nanoparticle size by scanning mobility particle size (SMPS) particle size analysis.
With Bath ultrasound 5 minutes, micropipet
Major physical properties
Nano-copper antibacterial agent CUP22 is a light translucent nanocolloid type
and is an inorganic antibacterial agent with excellent dispersibility.
It has a particle size of 10 - 40 nm and is highly valuable
as an antimicrobial agent as an ethanol solvent.
Physical property item | CUP22 |
|---|---|
Feature | Light blue translucent nanocolloid |
Particle size | 10~40nm |
pH | 6.5 ~ 7.5 |
Solvent | Ethanol |
Recommended usage | 2 - 5 wt% compared to solids |
Packing Weight | 4L / 15L |
COPPERBLE CUP22
Features
It is a nano copper antibacterial agent uniformly dispersed in an ethanol solvent in a nano size of 10-40㎚.
It can be applied to both oil-based and aqueous types, and is a nano-copper inorganic antibacterial agent
with excellent dispersibility as a nano-coloid type.
TEM Analysis
Particle size analysis (SMPS)
The nano copper antibacterial agent CUP22 showed that the average particle size was 17.65±0.99 nm as a result of measurin the nanoparticle size by scanning mobility particle size (SMPS) particle size analysis. With Bath ultrasound 5 minutes, micropipet
Major physical properties
Nano-copper antibacterial agent CUP22 is a light translucent nanocolloid type and is an inorganic antibacterial agent with excellent dispersibility.
It has a particle size of 10 - 40 nm and is highly valuable as an antimicrobial agent as an ethanol solvent.
Physical property item | CUP22 |
|---|---|
Feature | Light blue translucent nanocolloid |
Particle size | 10~40nm |
pH | 6.5 ~ 7.5 |
Solvent | Ethanol |
Recommended usage | 2 - 5 wt% compared to solids |
Packing Weight | 4L / 15L |
